Triaxis Rotor Sub
The Triaxis Rotor Sub is used above the PC Pump to eliminate premature failure of the standard pup joint which is normally run in this position and is used as a handling sub.
Contact Us to purchase the 2-7/8″ Pin X Pin Rotor Sub, 3-1/2″ Pin X Pin Rotor Sub or 4″ Box Top X Pin Bottom Rotor Sub.
The eccentric motion of the PC Pump rotor causes these failures resulting in costly early work overs.
In this situation the pump must also be brought to surface to replace the worn pup joint available models are Pin x Pin or Box x Pin
- Machined to work in 2-7/8″ and 3-1/2″ elevators for log stators
- Heavy Wall construction 3 time heavier the standard tubing for rotor wear
- Reduced workover and pump changes
- Less chance of stator failure by surfacing the pump
- High Abrasion resistance
- Less rotor head wear – Also shows Rotor spacing on Failure Analysis
- Longer pump run life
- Available 2-7/8″ 73mm 3-1/2 88.9mm

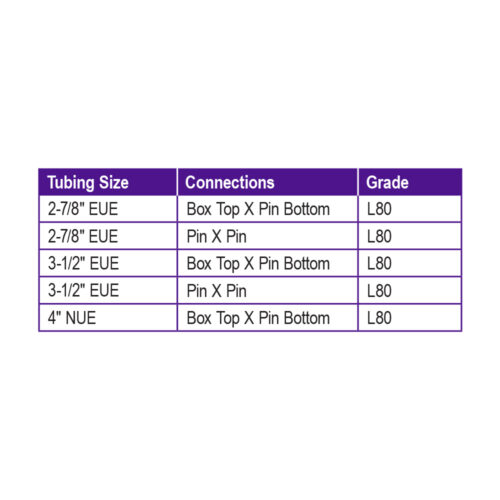

| Size | 2-7/8" Box Top X Pin Bottom, 3-1/2" Box Top X Pin Bottom |
|---|
Data Sheet
Terms & Conditions
- All Pricing is in USD
- Items Ordered will ship when available allow 8-10 wks for delivery
- Pricing excludes Applicable Import Export Duties and Taxes
- ALL returned items require an RMA and are subject to Inspection a 25% restocking fee applies
- Shipping, Handling and Crating extra
- All products are FOB Triaxis Oil Tools warehouse, Nisku AB Canada
