Triaxis ESP Sliding Sleeve High Flow Design
Patent Pending
The ESP Sleeve is designed to eliminate the need for additional profile nipples in the production string and allows the production team more production options.
The key features of the Triaxis ESP Hi Flow are:
- Flow Area 16 sq inches
- Chevron vee Seals top and Bottom
- Dual Profiles Tapered
- Jet Pump Capabilities
- Two locations for W/L plugs
- Ability to set W/L tools
- WJ Standing valve eliminating fluid fall when pump is not operating
- Sleeve is shifted using a B Shifting Tool
- Upper X Profile
- Lower F Profile 13 Chrome Inner Sleeve
- Available in 2-3/8″ 60mm, 2-7/8″ 73mm and 3-1/2″ 88.9mm EUE

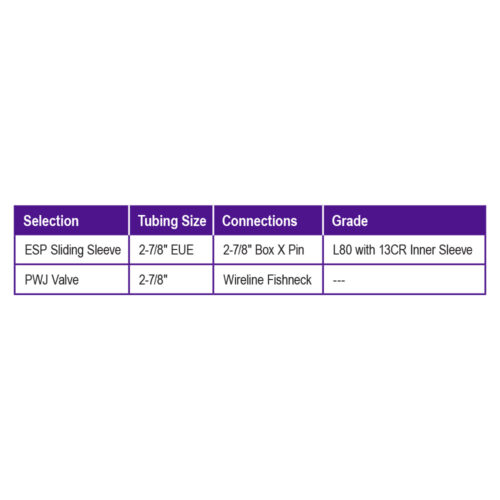

| Part Selection | ESP Sliding Sleeve, PWJ Valve |
|---|
Terms & Conditions
- All Pricing is in USD
- Items Ordered will ship when available allow 8-10 wks for delivery
- Pricing excludes Applicable Import Export Duties and Taxes
- ALL returned items require an RMA and are subject to Inspection a 25% restocking fee applies
- Shipping, Handling and Crating extra
- All products are FOB Triaxis Oil Tools warehouse, Nisku AB Canada
