Triaxis Safe Tension Tool
The Triaxis Safe Tension Tool (STT) is designed to eliminate the potential for a loss of control situation which may be experienced when setting a tubing string in tension using the standard field procedure.
Contact us if you need Corrosion Resistant Coatings.
While tension is pulled into the tubing string using the STT there is no need to remove the BOP’s or to overstretch the tubing, which is the case when using Low Line Slips.
The STT is installed between the tubing hanger and the production tubing and once the tubing hanger is landed, isolating the annulus, tension is pulled into the tubing string and safely locked into place without losing well control.
- Allows for complete well control at all times
- Eliminate the need to over stretch tubing
- Slimhole versions available
- Available in multiple materials
- Corrosion resistant coating available (Nickel, Impreglon)
- Rate to 10,000 PSI Service
- Available in 2-3/8″ 60mm, 2-7/8″ 73mm and 3-1/2″ 88.9mm EUE

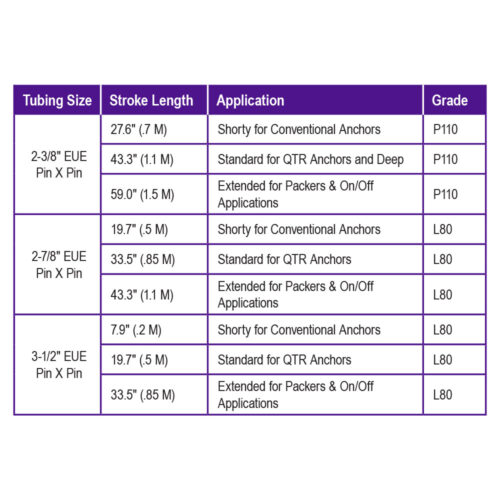

| Safe Tension Tool Selections | 2-3/8", 27.6" (.7 M), 2-3/8", 43.3" (1.1 M), 2-3/8", 59.0" (1.5 M), 2-7/8", 19.7" (.5 M), 2-7/8", 33.5" (.85 M), 2-7/8", 43.3" (1.1 M), 3-1/2", 7.9" (.2 M), 3-1/2", 19.7" (.5 M), 3-1/2", 33.5" (.85 M) |
|---|
Data Sheet
