Triaxis Extreme Hi Flow Hydraulic Bear Anchor
The Bear Anchor is a Maximum Flow Tubing anchor, the Triaxis Hydraulic Bear Anchor (Patent Pending) provides Hi Flow bypass.
Contact us if you require corrosion resistant coatings.
When you are unable to rotate your tubing on install because of deviations or long horizontal runs.
The Triaxis Hydraulic Bear provides the optimum way to set tension when running a gas separator.
Large bypass makes The Bear ideal for use in wells that have a problem with sand, wax or wellbore debris issues. Easily allows for flushing past the anchor to clear the casing obstructions while providing the large flow for gas exiting the separator to the annulus.
- Serviceable – shear pins are field serviceable
- Large Annular bypass
- 4330V MOD Mandrel
- 4140 Body
- Corrosion resistant coatings on request to meet wellbore conditions
- Manufactured to Industry standards ISO API
- The catch anchor feature will hold the tubing in place should your pipe break.

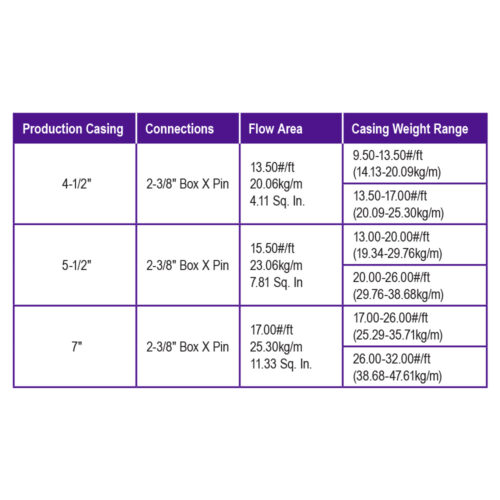

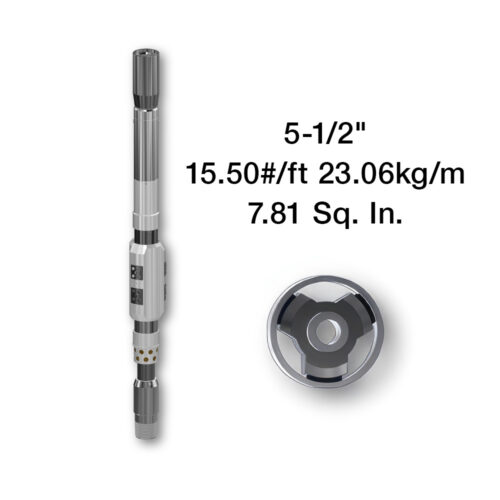

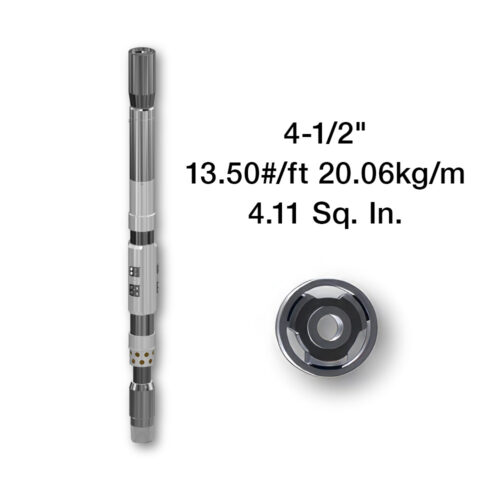

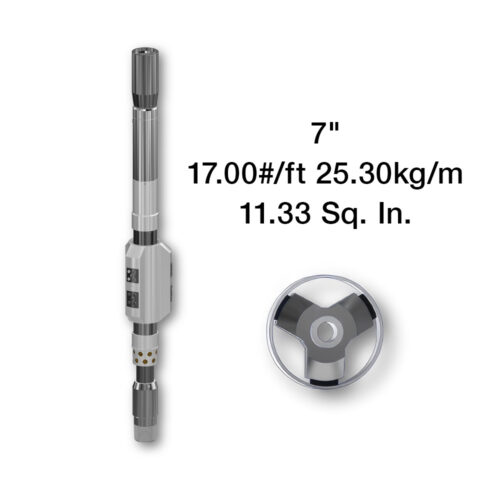

| Size | 4-1/2" Standard, 4-1/2" Heavy Weight, 5-1/2" Standard, 5-1/2" Heavy Weight, 7" Standard, 7" Heavy Weight |
|---|
Data Sheet
