Triaxis Hydraulic Jet Pump

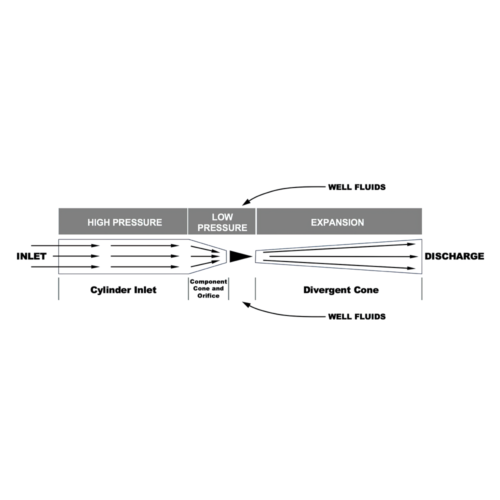

High pressure Energized fluid is pumped to the nozzle section of the pump and passes a jet stream into the throat section where this action creates a vacuum effect or void space allowing the well fluid to be drawn in at a rate dependent on the power fluid velocity and pressure. As the two fluid streams mix the  stored potential energy from the power fluid energizes the lower pressure well fluid as it passes through the Diffusion sleeve. The combined power fluid and well fluid then returns to the surface up the casing or tubing or opposite the path used to inject the fluid to a tank or separator.
